Ice Box
Several years ago I was in Glasgow visiting with family. We went out to a restaurant and I ordered a Famous Grouse. When the server returned, there was ice in the glass. I asked my host, "Did I ask for ice?" His answer was direct and simple, "It was your accent!"

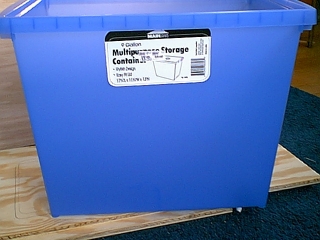

Okay, I admit it, I am an American. Our democratic principles are founded on our rights to "ice, liberty, and the pursuit of happiness" (I may not have that exactly right.) While I often offend the sensibilities of my friends by drinking warm pop and unadulterated whisky, I still believe that an efficient (though small) cooler is needed on a cruising vessel. Here's a pictorial account of the one I built for Drinian. I took the basic design from Daniel Spurr's Upgrading the Cruising Sailboat (Seven Seas Press). I did, for better or worse, make some modifications. I chose to build the box around a 9 gallon plastic tub rather than fiberglassed (GRP to my cousins) plywood. After viewing the pictures I realized that I failed to show that I used rigid foam cut in sheets and sealed with "canned" foam sealant. I used marine polyester filler to fill joints and epoxy resin (so as not to affect the styrofoam). The pictures will explain it better:

click to enlargeclick to enlarge

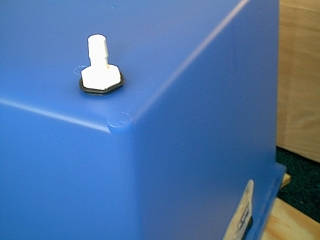

I added a PVC drain to the tank.

click to enlargeclick to enlarge

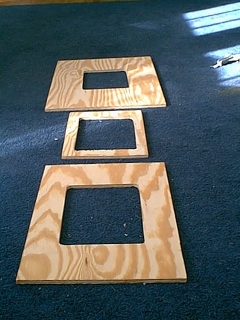

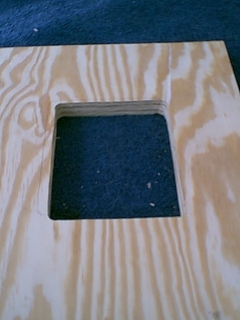

I created a sandwich to allow me to get a fully insulated seal around the container and still be able to have several inches of unbroken insulation above. Note below that the inside corners have been faired (not shown: then taped and epoxied). You may be able to see how the nested plywood permits the addition of a layer of foam between the smaller section to which the container is attached and the larger top piece which serves as the inner lid.

click to enlargeclick to enlarge

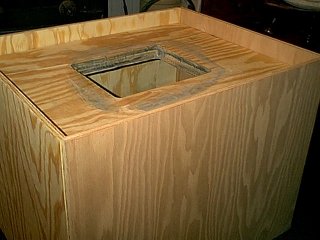

The picture on the right shows the inner lid in place. Two inches of rigid styrofoam go above this to give 3+ inches all around. More would be better, but space limitations will not allow more. The box is to occupy a portion of the berth abaft of the galley sink, if you are familiar with the layout of the older Westerly designs. The side of the icebox, therefore, will become a back rest for the chart table.

click to enlarge

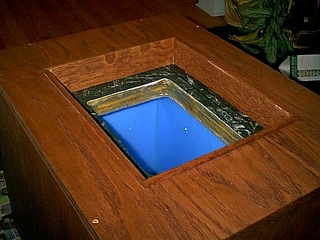

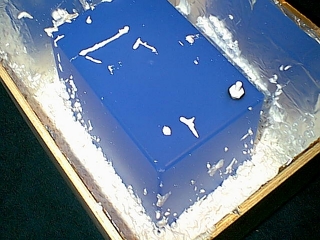

Here the blue container has been screwed to the sandwiched GRP (I'm turning into my Scottish self again!) I foamed between two plywood layers before adding rigid styrofoam. Note the foil liner that I added as a reflective barrier. I laid it over the wet epoxy.

click to enlargeclick to enlarge

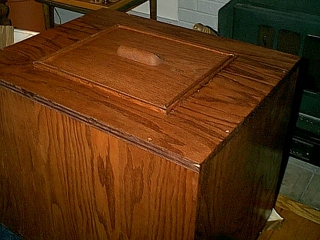

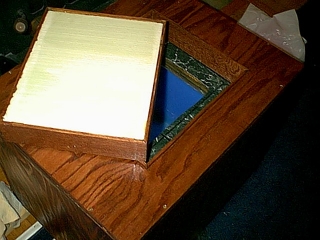

I placed a layer of sheet vinyl between the inner lid and the insulation to assure a smooth surface. The lid is a box with an oak drawer pull, filled with rigid foam, and epoxied with fiberglass mat. I used mahogany stain to match the laminate of the bulkheads and galley. Below is the finished box minus the trim which I will install in the Spring when I commission the boat.

click to enlarge

Any questions?
